Welcome to Soft4led, your go-to resource for all things tech! Today, we’re diving into the world of LED TV firmware with a detailed guide on the CV3393BH-U32 Firmware Software. If you’re a technician or just someone looking to update or fix your LED TV, you’re in the right place. Let’s get started with everything you need to know about the CV3393BH-U32 board and its firmware.

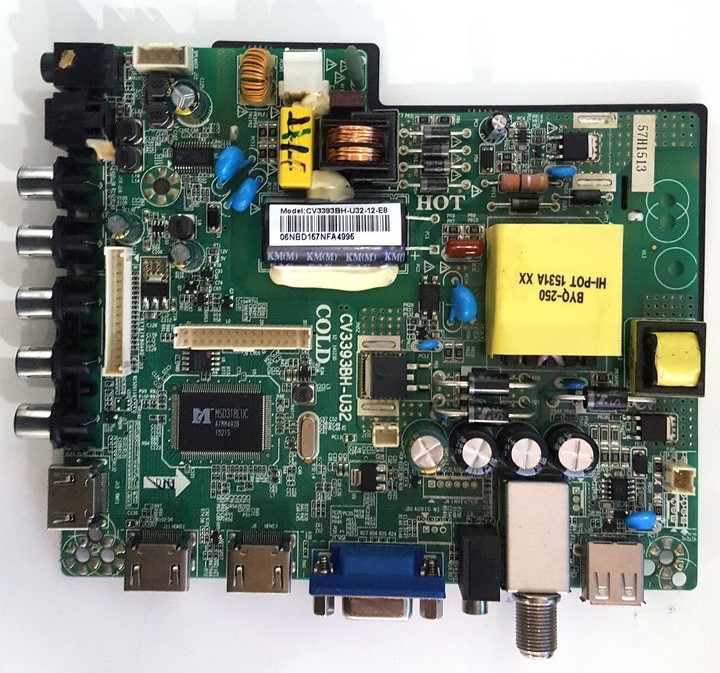

What is the CV3393BH-U32 LED TV Board?
The CV3393BH-U32 is a versatile ATV drive board designed specifically for LCD/LED TVs. It’s highly suitable for markets in the Asia Pacific and the Middle East. This combo board integrates the main power module, LED backlight inverter circuit, and ATV card into a single, compact motherboard. This integration simplifies the hardware design and makes it a robust choice for TV manufacturers and repair technicians alike.
Key Features of CV3393BH-U32
Here are some standout features of the CV3393BH-U32:
- HDMI Input: Connect your high-definition devices easily.
- USB Interface: Play media files directly from your USB drive.
- PC Input: Use your TV as a monitor.
- Component Input: Connect older devices without any hassle.
- TV and Headphone Jack: Enjoy TV audio privately with a headphone jack.
Compatibility
The CV3393BH-U32 is compatible with all panel screens with a backlight current of 350mA-600mA, depending on the hardware specifications. It’s designed to support screen sizes ranging from 32 to 65 inches, with resolutions up to 1920×1080.
Technical Specifications
- Brand/Mark: Universal HD Three-in-One Board
- Model: CV3393BH-U32
- Main Chip: MSD318LUC
- Product: LED TV
- LED Backlight Capacity: 300-350mA
- LED Backlight Voltage: 72~79V
- Flash IC: 2/4Mb
- Resolution: Up to 1920×1080
- Panel Voltage: 12V
- Power Input: 220V AC
Firmware Download and Installation
Ready to update your firmware? Follow these steps:
- Download the Firmware: Click the links below to download the CV3393BH-U32 firmware files.
- Backup Your Data: Ensure you have a backup of your current settings and data.
- Check the Mainboard: Verify that your TV’s mainboard is compatible with the firmware.
- Install the Firmware: Use a programming tool to write the firmware to your board.
Note: This firmware is a backup dump. Make sure you have sufficient knowledge of loading or installing software/firmware or dump files before proceeding. Soft4led is not responsible for any damage or loss resulting from the installation process.
Important Considerations
- Tuner Compatibility: Ensure your tuner is compatible with the firmware.
- Mirror Option: Check if your TV has a mirror option that needs configuring.
- Service Code: You might need the service code for certain settings or configurations.
Download Link
- Download CV3393BH-U32 FRIGIDAIRE-32
- Download CV3393BH-U32 IQ-32
- Download CV3393BH-U32 SANSUI-32
- Download CV3393BH-U32 WESTINGHOUSE-32
Conclusion
Updating your CV3393BH-U32 firmware can enhance your TV’s performance and add new features. Whether you’re a technician or a DIY enthusiast, this guide provides you with all the information you need to successfully update your TV. Stay tuned to Soft4led for more tech updates, tips, and guides!
