Your Samsung TV isn’t filling the screen. Black bars on the sides, top, or bottom. The picture looks cropped, zoomed in, or stretched. This is almost always a settings problem — not a hardware fault. In most cases, one setting change fixes it in under 60 seconds.
This guide covers every cause and every fix, sorted by input type and model year.
Why Is Your Samsung TV Not Showing Full Screen?
Four things cause this:
1. The aspect ratio setting is wrong. Samsung TVs default to 16:9, but one button press or a firmware update can flip this without you noticing.
2. The source device is sending the wrong resolution or signal. Your cable box, PlayStation, or PC might be outputting 4:3 or a non-standard format. The TV shows it exactly as received — black bars and all.
3. Overscan or Screen Fit is misconfigured. Overscan crops the outer edges. Screen Fit removes that cropping. If either is set incorrectly, you lose screen real estate.

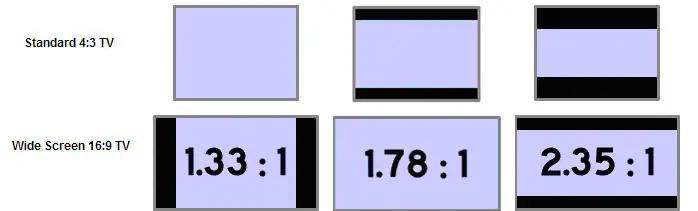

4. The content itself is in 4:3 or 21:9 format. Old TV shows, some movies, and certain streaming libraries are mastered in non-widescreen formats. No setting will make those fill a 16:9 screen without distorting the image.
Knowing the cause tells you which fix to apply. Start with the fastest one below.

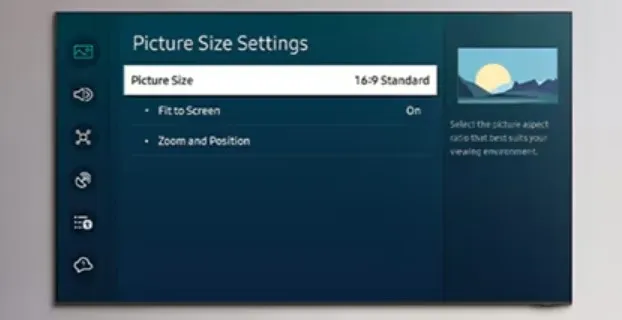

Fix 1: Check the Picture Size Setting (Start Here)
This solves the problem for 70% of users.
On Samsung TVs from 2020–2026 (Tizen OS):
- Press the Home button on your remote
- Go to Settings (gear icon)
- Select Picture
- Select Picture Size Settings
- Select Picture Size
- Choose 16:9 or Screen Fit
What each option does:
| Setting | Effect |
|---|---|
| 16:9 | Standard widescreen — correct for most content |
| Screen Fit | Removes overscan, shows full signal edge-to-edge |
| Custom | Manual zoom/position — check if this was set accidentally |
| 4:3 | Legacy format — creates pillarbox bars on sides |
| Wide Fit | Stretches narrower content horizontally |
| Zoom 1 / Zoom 2 | Magnifies and crops — almost always wrong setting |
If your Picture Size is set to Zoom 1, Zoom 2, or Custom, that’s your problem. Switch to 16:9 first. If black bars remain, try Screen Fit.
Fix 2: Fix by Input Type
The fix changes depending on what’s plugged in or playing.
HDMI Inputs (Cable Box, Game Console, Streaming Stick)
When a device is connected via HDMI, the TV reads the signal it receives. If the source sends a 4:3 or wrong-resolution signal, the TV shows it with bars.
Steps:
- Go to Settings → Picture → Picture Size Settings
- Set Picture Size to Screen Fit or 16:9
- If that doesn’t work, fix the output settings on the source device (see Fix 6 below)
Not sure which HDMI port is causing display issues? The TV HDMI Port Selector tool can help you identify which port and settings combination works best for your setup.
Built-In Apps (Netflix, YouTube, Disney+)
Streaming apps show content in the format the studio uploaded. A 4:3 sitcom from the 1990s will always have side bars — that’s correct behavior, not a bug.
For widescreen content that still shows bars:
- Press Home → Settings → Picture → Picture Size Settings
- Set to 16:9
- Check inside the app itself — Netflix and YouTube have their own zoom/fill controls in playback mode
Over-the-Air / Antenna Channels
Some local channels still broadcast in 4:3. Others broadcast in 720p or 1080i widescreen. If one channel looks zoomed and another has bars, the issue is the broadcast format.
Set Picture Size to 16:9 for widescreen channels. For 4:3 channels, the side bars are normal and correct. Don’t stretch the image — it distorts faces and graphics.
If you’re getting patchy reception on top of display issues, check your signal strength with the TV Antenna Signal Estimator before adjusting picture settings.
Screen Mirroring / Casting from Phone or Laptop
When casting from an Android, iPhone, or laptop, the TV mirrors your device’s screen resolution. A phone in portrait mode creates massive side bars.
Fix: Rotate your phone to landscape before casting. On a laptop, match your laptop’s output resolution to the TV’s native resolution (3840×2160 for 4K Samsung TVs, 1920×1080 for 1080p models).
Fix 3: Disable Overscan
Overscan zooms in slightly and crops the outer 2–5% of the image. It was originally designed to hide analog signal noise around the edges. On modern digital signals, it just cuts off content.
How to turn off overscan on Samsung TV:
- Go to Settings → Picture → Picture Size Settings
- Set Picture Size to Screen Fit
- Alternatively, look for Fit to Screen and set it to On
On some 2022–2026 Samsung models:
- Go to Settings → Picture → Expert Settings
- Look for HDMI Black Level — set it to Normal (wrong setting here causes display edge issues)
If overscan is causing the problem, Screen Fit removes it instantly. Your picture will expand slightly to fill the full panel.
Fix 4: Picture Size Option Is Greyed Out
This is a common frustration. You go to Picture Size and the options are faded — you can’t select anything.
Why this happens:
- Some HDMI sources (especially PCs and game consoles at specific resolutions) lock the aspect ratio. The TV detects the signal format and disables manual override.
- PC Mode on Samsung TVs automatically restricts Picture Size options to prevent distortion.
How to fix it:
Option A — Change the input label:
- Go to Settings → General → External Device Manager → Device Connection Manager (varies by model)
- Or press Source, select your input, press Up, and choose Edit
- Change the label from PC to DVI PC or leave it unlabeled
- Go back to Picture Size — options should now be available
Option B — Change resolution on the source device: If a PC is connected, change your PC’s display resolution. Samsung TVs at 4K (3840×2160) with a PC signal sometimes lock picture controls. Drop to 1920×1080 and test.
Option C — Use a different HDMI port: Some HDMI ports on Samsung TVs have dedicated modes. HDMI 1 may behave differently from HDMI 2.
Fix 5: Fix the Source Device Settings
If the Samsung TV settings are correct but bars remain, the source device is sending the wrong signal.
PlayStation 4 / PlayStation 5
- Go to PS4/PS5 Settings → Screen and Video → Video Output
- Set Resolution to Automatic or 2160p (for 4K TVs)
- Set HDR to Automatic
- Turn off Overscan if the option is available
Xbox Series X / Series S / Xbox One
- Go to Settings → General → TV & Display Options
- Set Resolution to 4K UHD or 1080p depending on your TV
- Go to Calibrate TV and follow the steps
- Set Allow 4K to On
Windows PC
- Right-click Desktop → Display Settings
- Set Resolution to 3840×2160 (4K TV) or 1920×1080 (1080p TV)
- Open your GPU control panel:
- Nvidia: Control Panel → Display → Adjust Desktop Size and Position → Set Scaling to Full-screen, Perform scaling on GPU
- AMD: Radeon Settings → Display → Scaling Mode → Full Panel
- Intel: Graphics Settings → Display → Scaling → Full Screen
Cable or Satellite Box
- Access your box’s settings menu
- Find Display or Video Output settings
- Set output resolution to 1080p or 4K (match your TV’s resolution)
- Set Aspect Ratio to 16:9 Widescreen
Fix 6: Model-Specific Notes
QLED and Neo QLED (2022–2026)
Menu path: Settings → All Settings → Picture → Picture Size Settings
On 2024–2026 models, Samsung moved some settings under Picture Clarity. If you can’t find Picture Size, check there first. Also check Auto Wide — if it’s enabled, it can automatically switch aspect ratios based on content, which causes inconsistent behavior.
The Frame TV and The Serif
These models have an Art Mode that activates when the TV detects no signal. If your picture looks cropped in regular mode, confirm you’re not accidentally in Art Mode by pressing any button on the remote.
Older Samsung Models (2018–2021)
Menu path: Menu → Picture → Picture Size
On remote controls from this era, press the P.SIZE button directly — it cycles through all aspect ratio options without going into the menu.
Fix 7: Reset Picture Settings to Default
If multiple settings are misconfigured and you can’t track down the cause, reset Picture Settings only. This doesn’t reset your network, apps, or other configurations.
On 2020–2026 Samsung TVs:
- Go to Settings → Picture
- Scroll down to Expert Settings
- Select Reset Picture
- Confirm
This restores brightness, contrast, sharpness, color, and picture size to factory defaults. It’s a clean slate without the nuclear option of a full factory reset.
If you’ve already tried this and the problem persists, check out this complete Samsung TV factory reset guide — sometimes a full reset is the only way to clear corrupted display settings.
Fix 8: Update Samsung TV Firmware
A firmware bug can corrupt display settings and cause persistent aspect ratio issues. Samsung released several picture-related patches in 2024 and 2025.
How to update:
- Go to Settings → Support → Software Update
- Select Update Now
- If an update is available, the TV downloads and installs it automatically
- The TV restarts — check your picture settings after
If your TV isn’t connecting to update, see the fix for Samsung TV not connecting to Wi-Fi before trying again.
You can also update via USB:
- Download the firmware from samsung.com/support on a PC
- Extract the file to a USB drive (FAT32 format)
- Plug into your TV’s USB port
- Go to Settings → Support → Software Update → Update via USB
Fix 9: Factory Reset (Last Resort)
If nothing above has worked, a factory reset clears all settings — including any corrupted display configuration.
How to factory reset Samsung TV:
- Go to Settings → General → Reset
- Enter your PIN (default: 0000)
- Confirm reset
- Reconfigure your TV from scratch after it restarts
For a full walkthrough of what the reset does and how to restore your preferences after, follow this Samsung TV factory reset guide.
If the full-screen issue returns after a factory reset, the problem is almost certainly the source device — not the TV itself.
Still Not Fixed? Contact Samsung Support
If you’ve run through all 9 fixes and the screen still won’t display correctly:
- Samsung Support: 1-800-SAMSUNG (1-800-726-7864)
- Online chat: samsung.com/us/support
- Service menu: Advanced users can access the Samsung service menu for deeper diagnostics — find the correct codes for your model using the Samsung TV service menu codes guide
⚠️ Only access the service menu if you’re comfortable with technical settings. Incorrect changes can cause display issues that are harder to reverse.
FAQ
Why does my Samsung TV have black bars on the sides? The content is in 4:3 format, or your aspect ratio is set to 4:3 instead of 16:9. Go to Settings → Picture → Picture Size Settings and select 16:9 or Screen Fit.
Why does my Samsung TV have black bars on the top and bottom? The content is in a 21:9 cinematic format (common in movies), or your TV is set to a vertical/portrait display mode. For widescreen movies, the bars are part of the original format.
Why is the Picture Size option greyed out on my Samsung TV? The connected device (usually a PC or console) is controlling the output resolution and locking the TV’s aspect ratio options. Change the input label from “PC” to something else, or adjust the resolution on the source device.
Does Screen Fit reduce picture quality? No. Screen Fit disables overscan cropping. It actually shows more of the original image, not less. Picture quality is unchanged.
Will a factory reset fix the full screen problem? It can — if a corrupted setting is causing it. But first try Reset Picture under Settings → Picture → Expert Settings, which is less disruptive.
My Samsung TV picture looks stretched. What do I do? You’re likely on Wide Fit or a custom zoom setting. Go to Picture Size Settings and select 16:9. That returns the image to the correct proportions.
