Download ST239-F20G Firmware Software [All Resolutions]

Welcome to our guide on downloading the latest ST239-F20G firmware software! Whether you’re a tech enthusiast or just someone looking to get the most out of your LCD controller board, you’ve come to the right place. Let’s dive into the world of ST239-F20G and ensure your device runs smoothly with the latest firmware update.

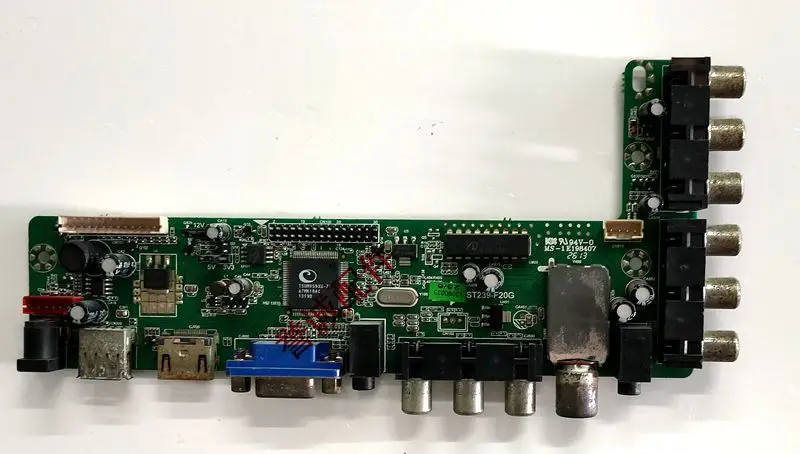

What is the ST239-F20G?

The ST239-F20G is a versatile and powerful LCD controller board designed primarily for the Asian market. It supports a FULL HD LCD panel and offers various input and output options, making it a great choice for a wide range of applications. Here’s a quick overview of its key features:

Model No.: ST239-F20G
Main Chipset: TSUMV59XU-Z1
Display Format: Up to 1920×1080
SPI Memory: 4MB
Sound IC: 1517P
Firmware Type: USB Bootable

General Specifications

The ST239-F20G is packed with features to ensure top-notch performance:

TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+/Source/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohm)
Panel Voltage: +3.3V/+5V/+12V DC (jumper cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Supports audio, video, picture, and text formats
IR Control: Yes (Controllable by Remote Control)

Electrical Parameters

For those interested in the technical specs, here are the electrical details:

Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W (for the motherboard only)
Maximum Current for USB: 500mA

How to Upgrade the Firmware

Updating your firmware is a breeze! Just follow these simple steps:

Prepare a USB Drive: Ensure your USB drive is empty.
Copy the Firmware: Download and copy the appropriate resolution program (MERGE59.bin) to your USB drive based on your screen size.
Connect the USB: Insert the USB drive into the mainboard.
Power Up: Connect the keyboard and TV mainboard, then connect the power supply.
Wait for the Flashing Light: If the keyboard light flashes, the program is writing. Once it turns green, the update is complete. If not, repeat the process.

Factory Service Mode

If you need to access the factory service mode, use the following commands:

Menu 1147
Input + 2580

Important Note: This firmware is a backup dump and can be written using a programming tool. Always ensure you know what you’re doing before attempting to install the software. The Kazmi Elecom Team is not responsible for any damage or loss resulting from firmware installation. If you’re new to this, it’s recommended to read the guidelines thoroughly before proceeding.

ST239-F20G Firmware Software Download Links

Ready to update? Click the link below to download the latest ST239-F20G firmware for all resolutions:

Related Posts:

Stay tuned for more updates and tips on getting the most out of your devices. Happy upgrading!
