Download T.MSD306.9A Firmware Software [All Resolutions]

Welcome to Soft4led.com! If you’re on the lookout for the latest firmware for your T.MSD306.9A LED TV board, you’ve landed at the right place. This post will guide you through everything you need to know about the T.MSD306.9A firmware, including its features, specifications, and how to download and install it. Let’s dive in!

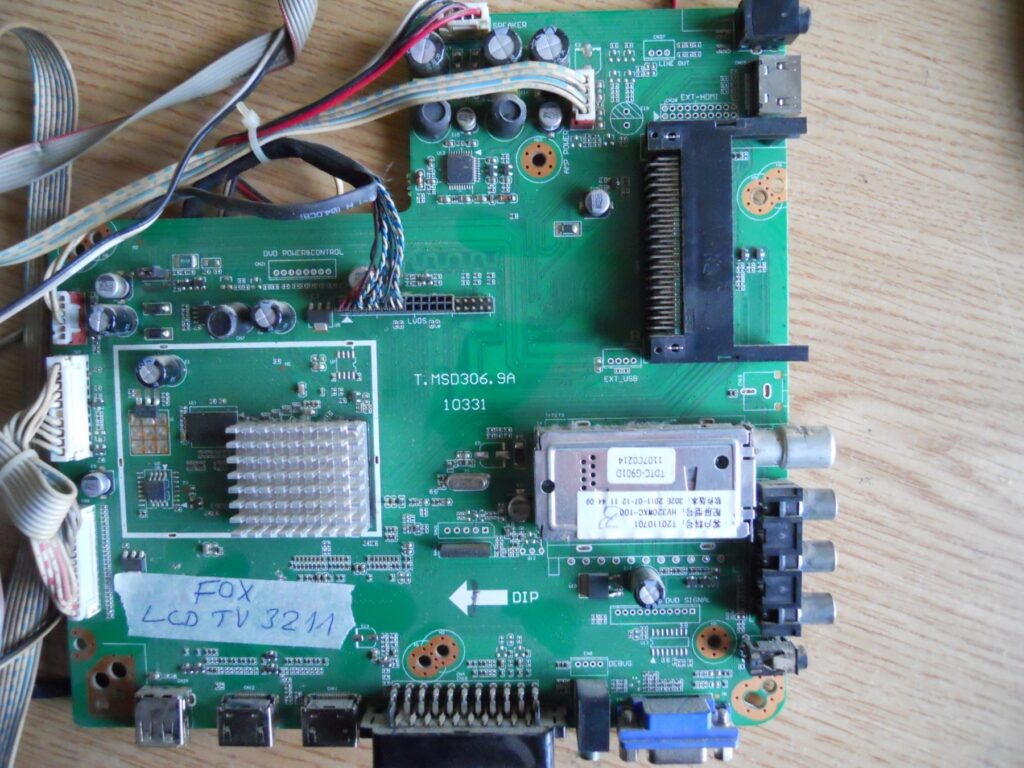

What is T.MSD306.9A LED TV Board?

The T.MSD306.9A is a versatile ATV Driver Motherboard designed for LCD and LED TVs, primarily targeting the Asia Pacific and Middle East markets. This non-combo board requires a separate main power module and LED backlight inverter circuit module, though it conveniently includes an ATV card built into the motherboard.

Key Features

The T.MSD306.9A LED TV board boasts a variety of features and connectivity options that align with modern demands:

HDMI Input: Enjoy high-definition video and audio through a single cable.
USB Interface: Update firmware or play multimedia files directly from your USB device.
PC Input: Connect your computer for a larger display experience.
Component Input: Versatile connectivity for older devices.
TV and Scart: Multiple input options to fit various needs.
Earphone Output: For private listening without disturbing others.

Specifications

Here’s a detailed look at the general specifications of the T.MSD306.9A board:

Brand/Mark: Universal Board
Model: T.MSD306.9A
Main Chip: MSD306
Product: LCD/LED TV
LED Backlight: mA
Flash IC: 8Mb
Sound Chip: R2A15122
Tuner IC: DT82WT-3R-E
Screen Supported: 26-42 inch
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: 12V DC
Firmware Name: NA
Firmware Type: Backup Dump

Important Notes

Before diving into the firmware download and installation, here are some crucial points to consider:

The firmware provided is a backup file. Always verify your mainboard before installing any software.
We at Soft4led.com are not responsible for any damage or loss resulting from the upload/download of firmware.
If you are new to this or face issues during installation, it’s advisable to seek professional help or read the detailed guides on our website.

How to Download and Install T.MSD306.9A Firmware

Ready to update your T.MSD306.9A LED TV board? Follow these simple steps:

Download the Firmware: Use the links below to download the latest firmware for T.MSD306.9A.
Prepare a USB Drive: Format a USB drive to FAT32 and copy the downloaded firmware file onto it.
Insert the USB Drive: Plug the USB drive into the USB port on your TV.
Update the Firmware: Follow the on-screen instructions to update the firmware. This usually involves navigating to the settings menu and selecting the firmware update option.

Final Thoughts

Updating your TV’s firmware can significantly enhance its performance, add new features, and fix bugs. The T.MSD306.9A firmware is designed to support a wide range of resolutions and screen sizes, making it a versatile choice for many users.

At Soft4led.com, we strive to provide you with the best resources and support for all your TV board needs. If you have any questions or need further assistance, don’t hesitate to reach out to us. Happy updating!
