Welcome to Soft4LED! If you’re looking to download the latest firmware for the T.R67.PB801 LED TV board, you’re in the right place. We’ve got all the details you need to get your TV running smoothly. Let’s dive into the specifics of the T.R67.PB801, a universal combo LCD/LED TV controller board, and guide you through downloading and installing its firmware.

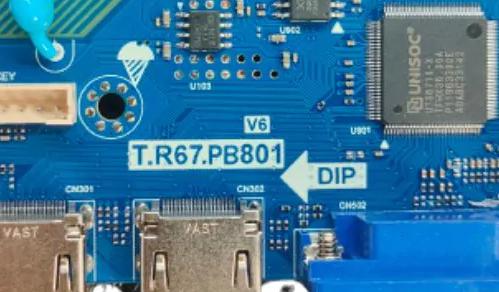

What is the T.R67.PB801 LED TV Board?
The T.R67.PB801 is a versatile and robust universal combo LCD/LED TV controller board. It’s packed with features designed to enhance your viewing experience and make your TV more adaptable. This board supports multi-resolution changes via code, has multiple built-in logos, and supports multiple remote controls.
Key Features of T.R67.PB801
- Model No.: T.R67.PB801 V6 (Combo Board)
- Main Chipset: UTS6710-X
- LED Backlight: 43-63V 700mA
- Display Format: Up to 1920×1080
- Panel Supported: 32″-39″
- Aspect Ratio: 4:3, 16:9 & 16:10
General Specifications
- TV System: PAL/SECAM/NTSC
- Panel Interface: Single-channel or Dual-channel LVDS
- Key Button Functions: CH-/CH+/MENU/VOL-/VOL+/Source/Power
- Multi-Language OSD: Yes
- Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
- Audio Output Power: 2 x 5 Watt (8 ohm)
- Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
- USB Port: Yes (supports firmware upgrade and multimedia playback)
- USB File Formats:
- Audio: Mp3, wma, m4a/aac
- Video: avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb
- Picture: Jpg, jpeg, bmp, png
- Text: txt
- IR Control: Yes (Controllable by Remote Control)
Electrical Parameters
- Working Input Voltage: AC 220V
- Maximum Current: 3000mA (Without Panel)
- Standby Power: <0.2W (for the motherboard only)
- Maximum Current for USB: 500mA
Factory Service Mode & Resolution Codes
To access the factory service mode, use the input codes:
- INPUT+815, 1150
Resolution codes for different display formats:
- INPUT 03771 for 1920×1080
- INPUT 03772 for 1366×768
- INPUT 05432 for 1920×1080
- INPUT 05431 for 1366×768
Downloading the Firmware
Before you proceed, please note the following:
- The firmware is a USB bootable and backup file.
- Ensure you have adequate knowledge of loading or installing software/firmware or dump files.
Disclaimer: Soft4LED is not responsible for any type of damage/loss resulting from uploading or downloading the firmware. If you are unfamiliar with the process, we recommend seeking assistance from a professional or thoroughly researching the process beforehand.
Installation Guide
- Download the Firmware: Click the link above to download the Firmware file.
- Prepare a USB Drive: Format a USB drive to FAT32 and copy the downloaded firmware file to the root directory of the USB drive.
- Insert the USB Drive: Plug the USB drive into the USB port of your T.R67.PB801 board.
- Enter Service Mode: Use the factory service mode input code to access the settings.
- Install the Firmware: Follow the on-screen instructions to install the firmware. Ensure not to interrupt the process.
Final Thoughts
Upgrading your T.R67.PB801 firmware can significantly enhance your TV’s performance, providing better resolution options and more stable operations. Remember to handle the installation process with care and always backup important files before proceeding.
Stay tuned to Soft4LED for more updates, guides, and the latest firmware downloads. If you have any questions or need further assistance, feel free to reach out to us. Happy viewing!
