What is T.VST26.12C?

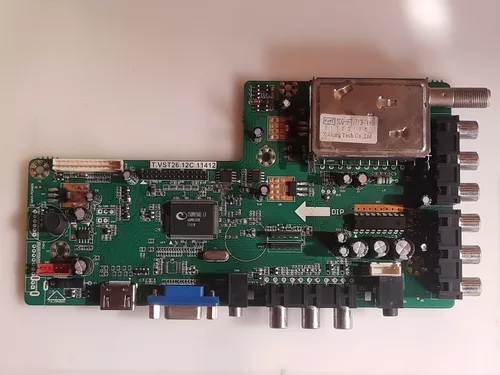

The T.VST26.12C is a universal driver board designed for LCD/LED TVs. It’s known for its versatility and compatibility with a wide range of TV models. This board can handle various display formats up to 1080p, making it a popular choice among technicians and DIY enthusiasts.

Basic Info

Model No.: T.VST26.12C 11331, 11412
Main Chipset: TSUMV26KE-LF, TSUMV26KU-LF
Tuner: ET-6T1E-EF108WR3 CDT-3FP212-31 ET-6T1E-LF-108W-A
Display Format: Up to 1080p

General Specifications

The T.VST26.12C board boasts impressive specifications to ensure high performance and compatibility with various TV systems.

TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+/Source/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out Jack
Audio Output Power: 2 x 5 Watt (8 ohm)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Formats: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (txt)
IR Control: Yes (Controllable by Remote Control)

Electrical Parameters

Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W (for the motherboard only)
Maximum Current for USB: 500mA

How to Upgrade Firmware

Upgrading the firmware on your T.VST26.12C board is a breeze. Follow these simple steps to ensure a smooth upgrade:

Copy the Firmware: Transfer the required firmware/software onto a FAT32 USB drive.
Plug in the USB Drive: Insert the USB drive into the USB port of your T.VST26.12C board.
Power On the TV: Turn on the TV and wait for the IR indicator LED to stop flashing.
Upgrade Complete: Once the LED stops flashing, your firmware upgrade is complete. Remove the USB drive.

It’s that easy! The entire process should take no more than a minute.

Factory Service Mode

To access the factory service mode, use the following command:

Command: MENU 1147
