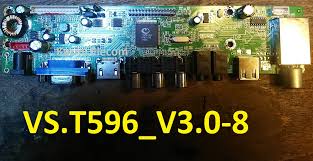

What is the VS.T596_V3.0-8 Universal Board?
The VS.T596_V3.0-8 is a versatile and powerful LCD/LED driver board designed to provide optimal performance for your displays. It supports a variety of TV systems, making it a go-to solution for all your screen needs.
Basic Info and General Specifications
Model No.: VS.T596_V3.0-8
Main Chipset: TSUMMV29LU
Display Format: Up to 1080p
TV System Support:
- PAL
- SECAM
- NTSC
Panel Interface:
- Single channel or Dual channel LVDS
Key Button Functions:
- CH-/CH+
- MENU
- VOL-/VOL+
- Source
- Power
Multi-Language OSD:
- Yes
Input/Output Ports:
- HDMI
- VGA
- AV
- USB
- RF TV interface
- Earphone Out Jack
Audio Output Power:
- 2 x 5 Watt (8 ohm)
Panel Voltage:
- +3.3V/+5V/+12V DC (jumper cap setting)
USB Port:
- Yes (Supports Firmware Upgrade and Multimedia Playback)
USB File Formats Supported:
- Audio: Mp3, wma, m4a/aac
- Video: avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb
- Picture: Jpg, jpeg, bmp, png
- Text: txt
IR Control:
- Yes (Controllable by Remote Control)
Electrical Parameters
- Working Input Voltage: DC +12 Volt
- Maximum Current: 2000mA (Without Panel)
- Standby Power: <0.2W (for the motherboard only)
- Maximum Current for USB: 500mA
How to Upgrade Firmware
Upgrading the firmware on your VS.T596_V3.0-8 board is a breeze. Just follow these simple steps:
- Copy the Required Firmware/Software onto a FAT32 USB Disk.
- Plug the U disk into the Mainboard USB port of the LCD/LED TV.
- Switch ON the power and wait until the IR indicator LED stops flashing.
- Done! Unplug the U-disk (the process takes a maximum of 1 minute).
Factory Service Mode
To enter the factory service mode, use the following sequence:
- INPUT
- MENU
Important Note: The software provided here is a backup dump and can be written using a programming tool. The Soft4LED team is not responsible for any damage or loss resulting from the uploading or downloading of the firmware. Please check the mainboard and ensure you have sufficient knowledge before installing the software. If you’re new to this, make sure to read the relevant instructions carefully.
