Welcome to Soft4led! If you’re on the lookout for the latest firmware updates for your VS.T596_V3.1-8 Universal LCD/LED Driver Board, you’ve landed in the right place. This post is packed with all the details you need to download and install the latest firmware, ensuring your TV performs at its best. Let’s dive in!

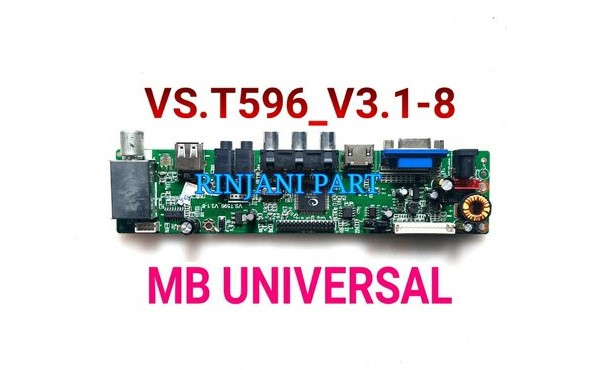

VS.T596_V3.1-8 Universal Board Overview
The VS.T596_V3.1-8 is a versatile and powerful universal driver board for LCD and LED TVs. It comes equipped with the TSUMMV29LU/V59 chipset, making it capable of supporting a variety of display formats up to 1080p. Whether you’re upgrading an old TV or building a new display system, this board is designed to meet your needs with ease.
Key Features of VS.T596_V3.1-8
- Model No.: VS.T596_V3.1-8
- Main Chipset: TSUMMV29LU/V59
- TV System: PAL/SECAM/NTSC
- Display Format: Up to 1080p
- Panel Interface: Single or Dual channel LVDS
- Key Button Functions: CH-/CH+/MENU/VOL-/VOL+/Source/Power
- Multi-Language OSD: Yes
- Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, Earphone Out Jack
- Audio Output Power: 2 x 5 Watt (8 ohm)
- Panel Voltage: +3.3V/+5V/+12V DC (with jumping cap setting)
- USB Port: Yes (for Firmware Upgrade and Multimedia Playback)
- IR Control: Yes (Remote Control Supported)
Electrical Specifications
- Working Input Voltage: DC +12 Volt
- Maximum Current: 2000mA (without panel)
- Standby Power: <0.2W (motherboard only)
- Maximum Current for USB: 500mA
Supported USB File Formats
- Audio: Mp3, wma, m4a/aac
- Video: avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb
- Picture: Jpg, jpeg, bmp, png
- Text: txt
How to Upgrade Firmware
Updating the firmware of your VS.T596_V3.1-8 board is a straightforward process. Follow these simple steps to ensure a smooth upgrade:
- Download the Firmware: First, download the required firmware/software file for your VS.T596_V3.1-8 board. Ensure the file is in FAT32 format.
- Prepare the USB Drive: Copy the firmware file to a USB drive formatted with FAT32.
- Connect the USB Drive: Plug the USB drive into the mainboard’s USB port on your LCD/LED TV.
- Power On the TV: Turn on the TV. The firmware update process will start automatically. Wait until the IR indicator LED stops flashing.
- Completion: Once the update is complete (usually within 1 minute), unplug the USB drive. Your TV’s firmware is now updated!
